Bay Window Pull Table - SN20

SN20 Bay Window Pull-Out Table

An ultra-sleek, aluminum-built slide system designed to extend bay window ledges into floating, space-saving study desks and work nooks.

The SN20 Bay Window Pull-Out Table System unlocks underutilized bay window space by converting standard window ledges into extended workstations. Built with lightweight yet durable extruded aluminum tracks and brackets, this hardware allows a sliding tabletop panel to extend outward smoothly when needed and push back flush against the window frame when not in use.

Key Features & Technical Specifications

• Premium Aluminum Build: Constructed with high-strength aluminum tracks and brackets for lightweight, corrosion-resistant, and stable operation.
• Hidden Positioning System: Concealed locking and positioning hardware maintains a clean, minimal aesthetic without exposed tracks or visible screws.
• Simple & Streamlined Installation: Easy to fit into custom cabinetry, window sill ledges, or built-in seating benches.

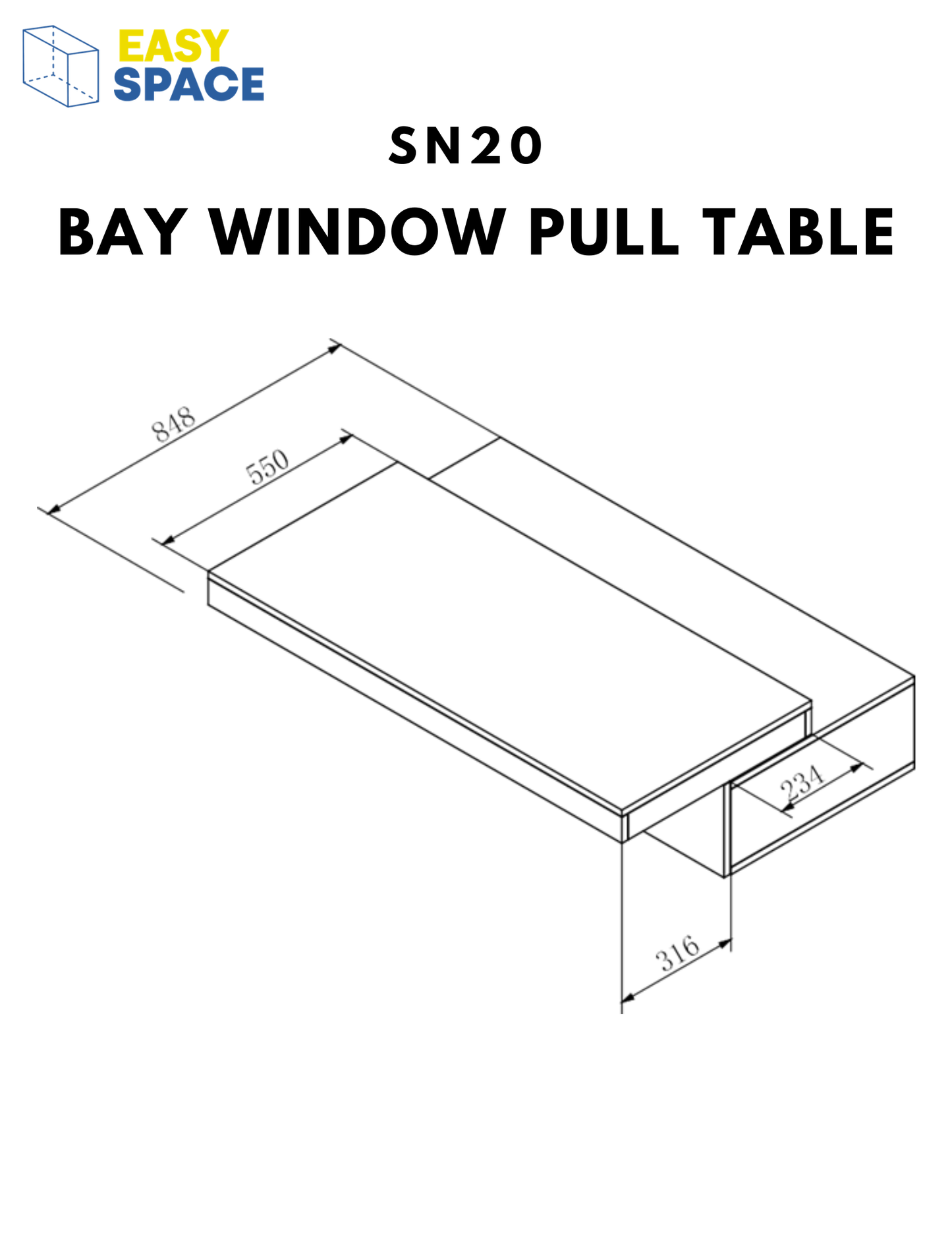

• Key Technical Dimensions:
• Overall Mechanism Length: 848 mm
• Pull-Out Table Surface Length: 550 mm
• Tabletop Extension Depth: 316 mm
• Concealed Track/Base Width: 234 mm

Note: Rendered photo for visual representation only. Actual wood grain, texture, and hardware finish may vary slightly on the final product.
