Rotating Pan with Leg Kitchen Island - SN19

SN19B-TX Rotating & Sliding Kitchen Island Table (Bottom-Track Mount)

An advanced 360-degree rotating and linear sliding hardware kit that transforms kitchen islands with a smooth, movable dining extension or prep table.

The SN19B-TX is a heavy-duty kitchen hardware system designed to bring dynamic flexibility to modern kitchen islands. Engineered with a concealed bottom-track layout, it allows a custom countertop extension to slide longitudinally, move transversely, and rotate freely at any angle. Whether stowed flush against the main island or extended into an L-shaped dining bar, this system optimizes kitchen space for cooking, prep, and social entertaining.

Key Features & Technical Specifications

• 3-in-1 Dynamic Motion: Enables longitudinal translation, transverse sliding, and 360-degree rotation at any point along the track.
• Integrated Hardware Package:
• 2 x Heavy-duty guide tracks (X-length)
• 1 x Heavy-duty rotation bracket module
• 4 x Noise-reduction limit stops
• 3 x Multi-directional universal caster wheels
• 3 x L-shaped mounting brackets
• Precision Engineering Formulas:
• Track Length Calculation (X): X = Movable Table Length - Movable Table Leg Thickness – 82 mm
• Countertop Overlap: Maintains a rigid 302 mm overlap between the fixed island and movable table top when pulled out to maximum extension.
• Recommended Tabletop Width: Optimized for movable tabletops between 450 mm – 1000 mm wide.
• Smooth & Silent Operation: Equipped with noise-reduction stops and floor-friendly casters for effortless, quiet handling.

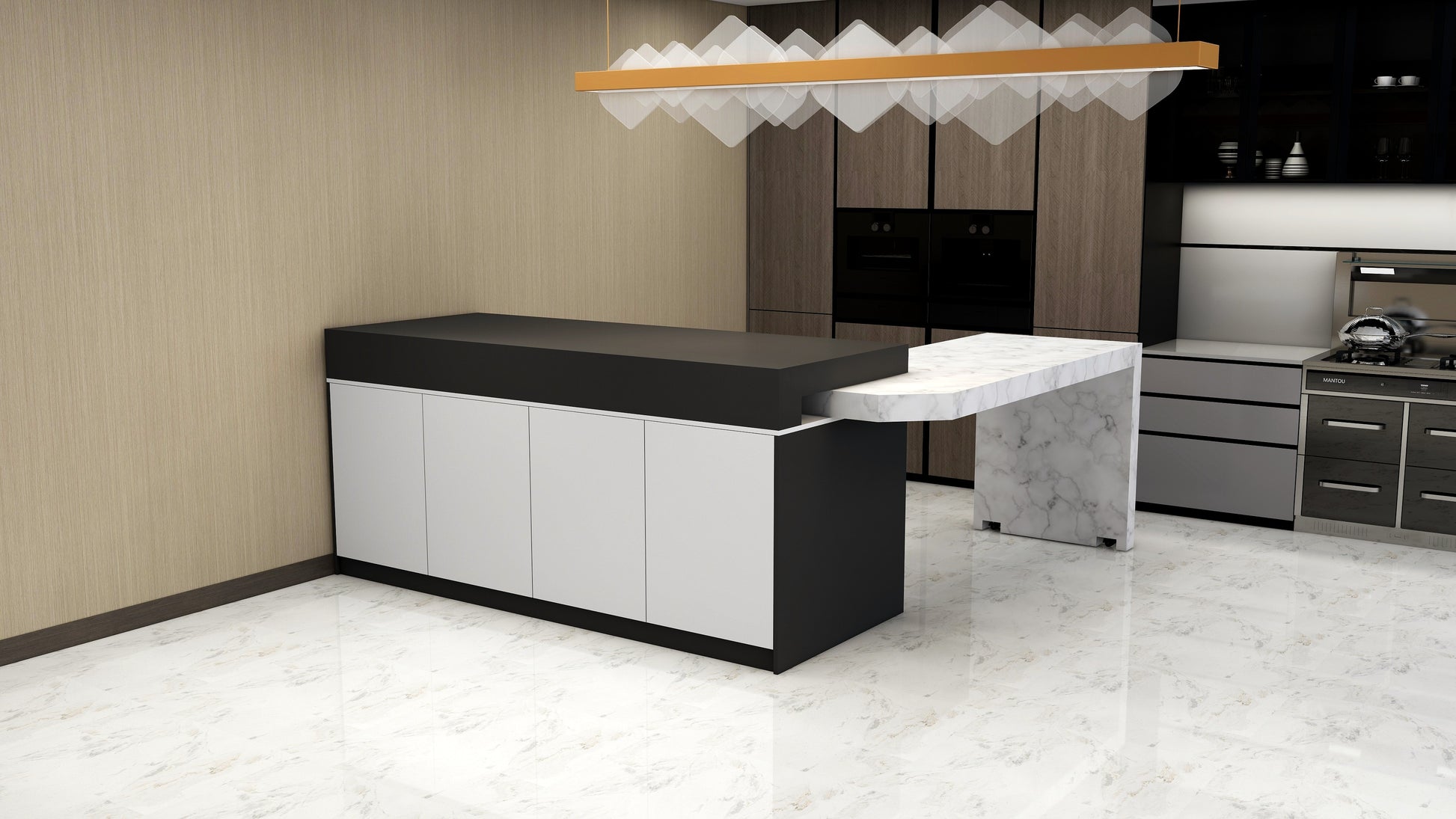

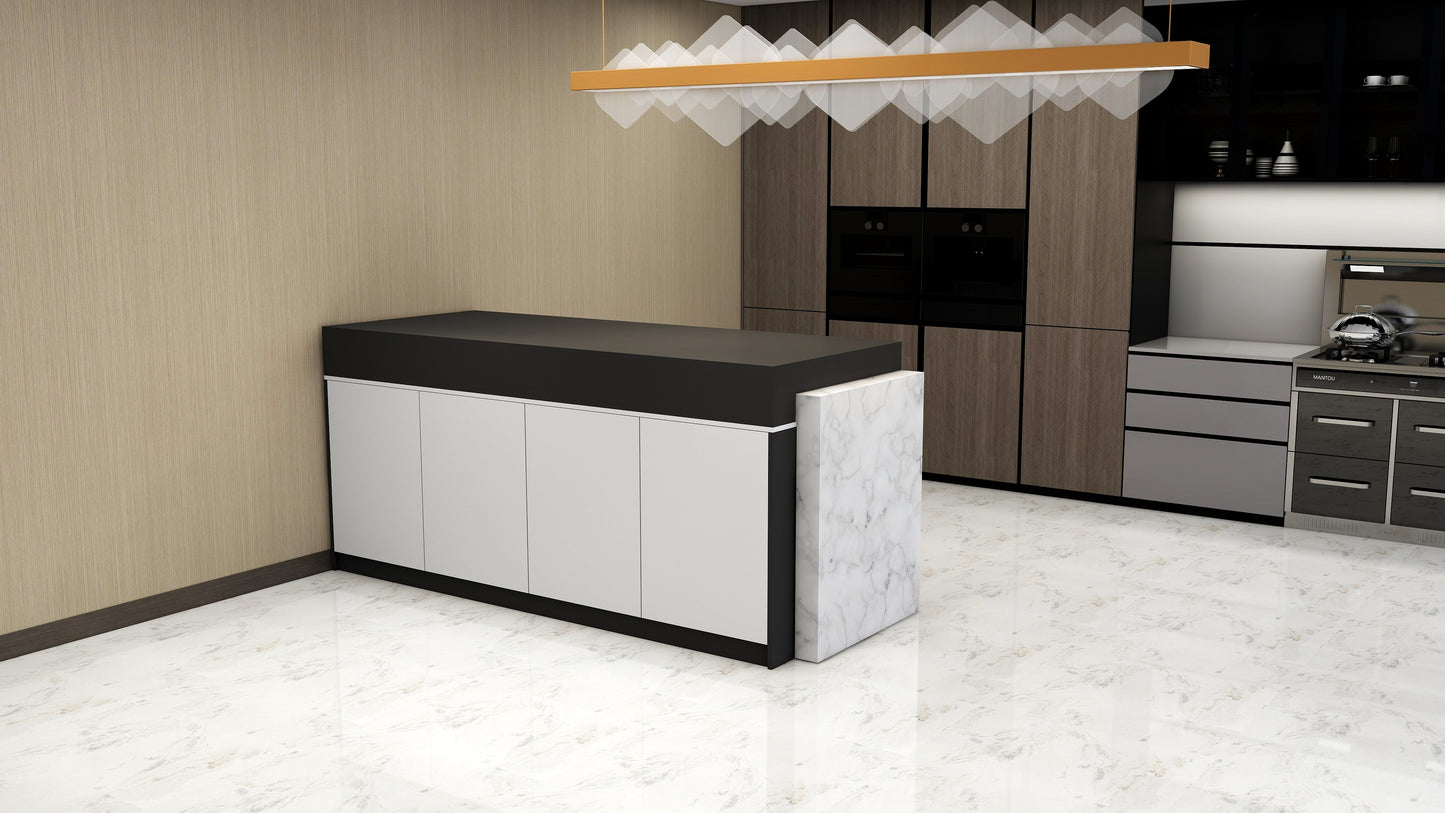

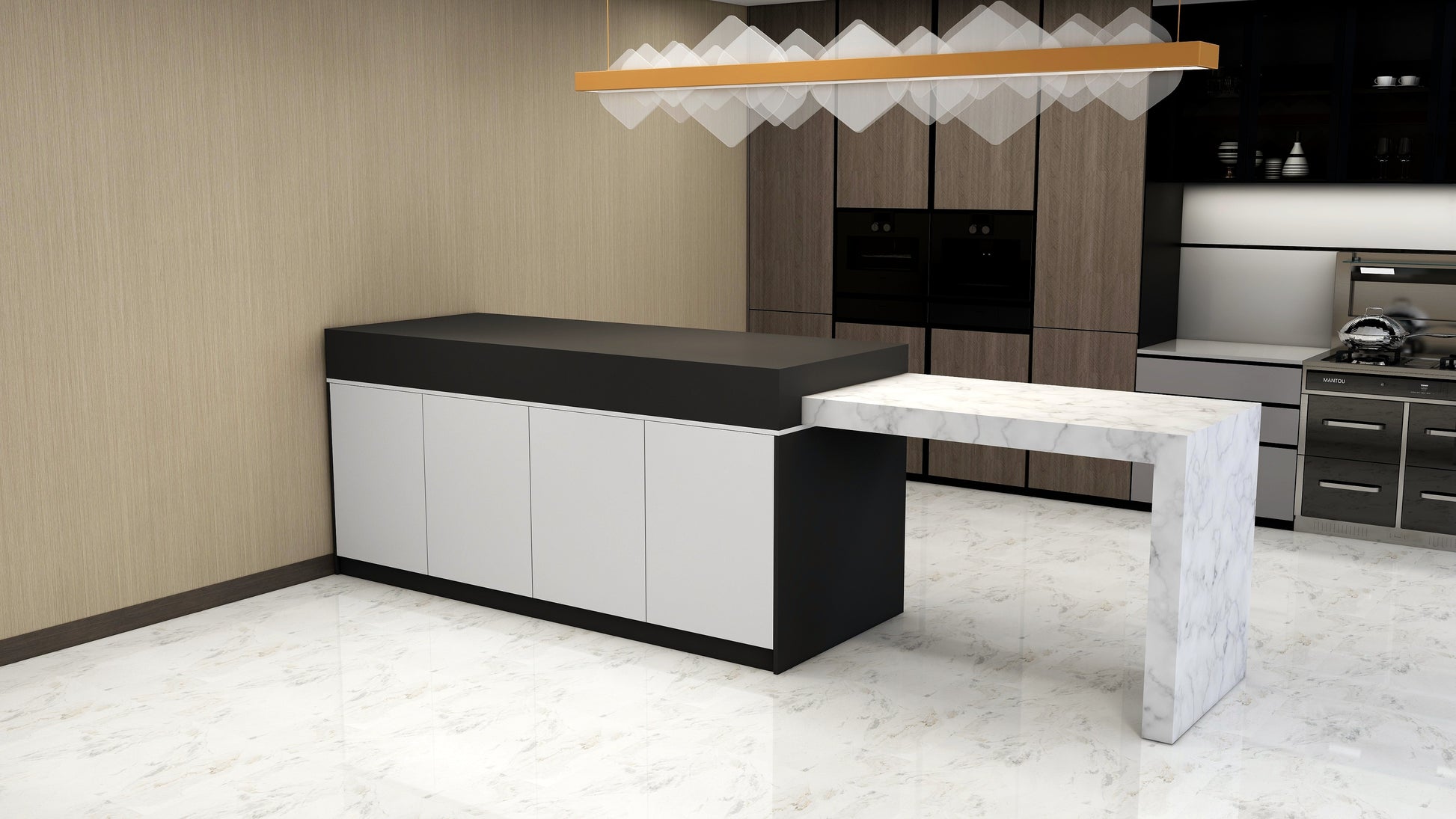

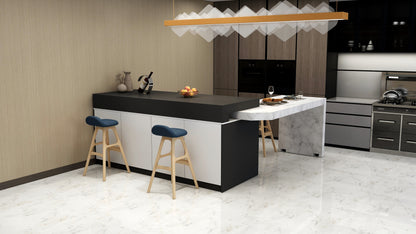

Note: Rendered photo for visual representation only. Actual wood grain, texture, and hardware finish may vary slightly on the final product.
