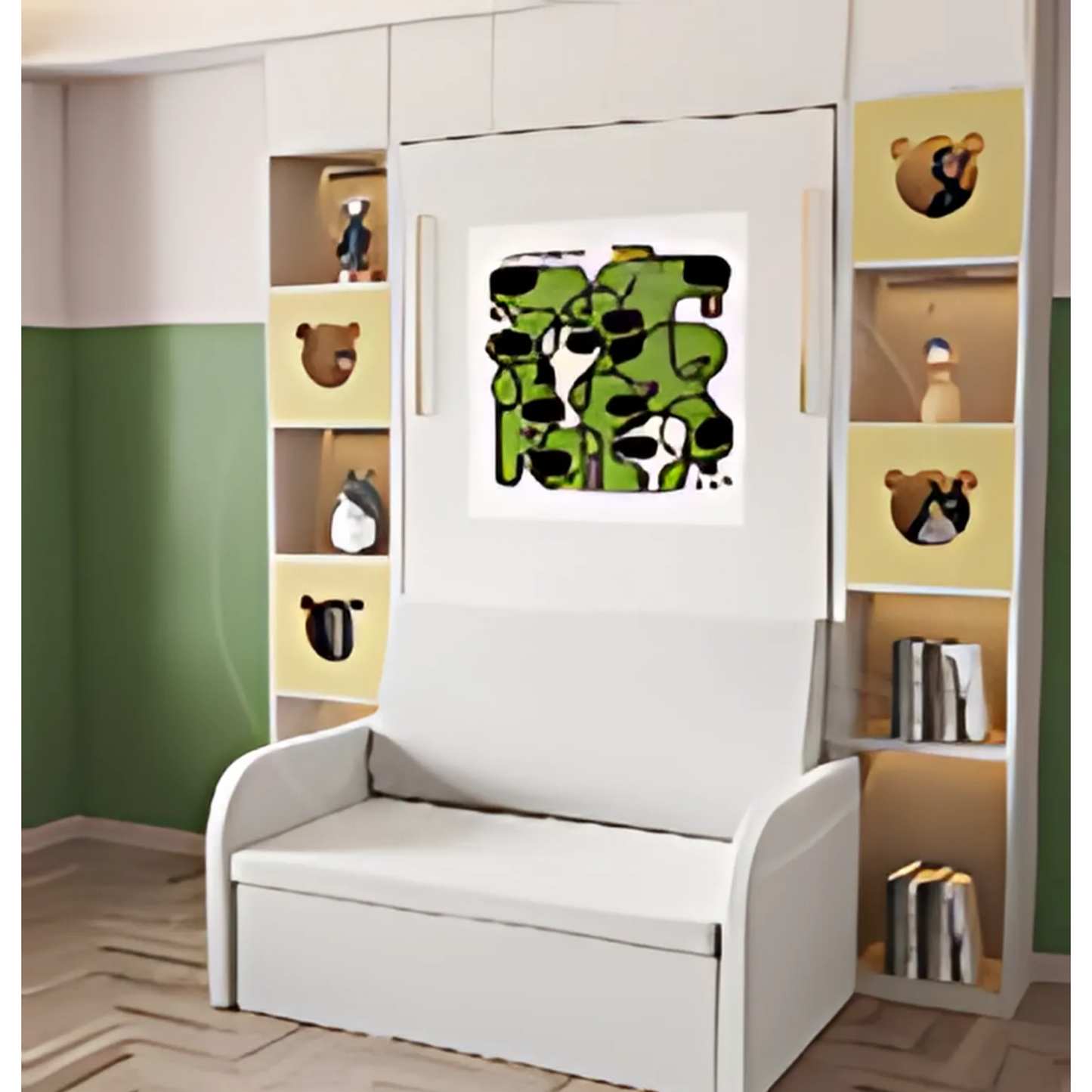

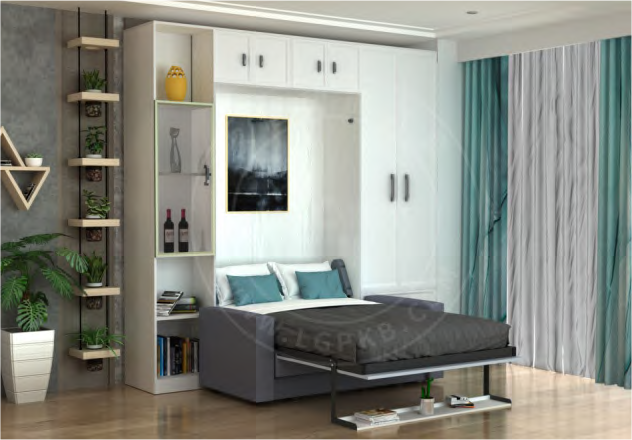

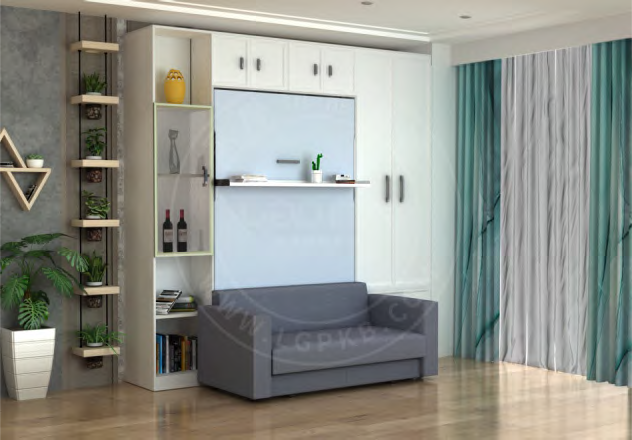

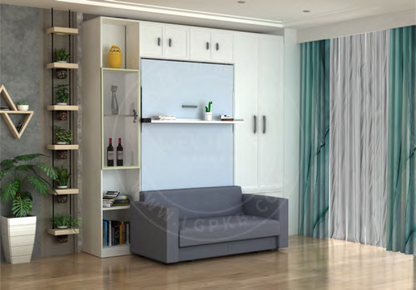

KVJM1219 Vertical Wall Bed with Bookshelf & Integrated Sofa

Maximize your living space with the JVJM1219 Vertical Wall Bed. This multi-functional hardware system smartly combines a hidden bed, a built-in display bookshelf, and an integrated sofa into one seamless, space-saving cabinet. It is the perfect solution for modern apartments, studios, or multi-purpose guest rooms that need to transition from a stylish living area to a comfortable bedroom in seconds.

Key Features

The advanced lifting mechanism is designed so that it will only take a little effort to close the bed, making daily transitions smooth and easy.
The front bed panel is constructed without a groove, ensuring a clean, minimalist, and uninterrupted look when the bed is folded away.
The system is engineered for fitting a 450mm height linkage sofa directly into the base of the unit.

Mattress Requirements To ensure the hardware operates safely and correctly, please use a mattress matching these specifications:

Mattress Size: 1.2 * 1.9m.
Mattress Weight: 21~25kg.
Maximum Thickness: ≤150mm.

Structural Dimensions When planning your custom cabinetry setup, reference the following dimensions for the KVJM1219 model:

Outer Cabinet Dimensions: 1338mm Width (W) by 2154mm Height (H).
Inner Cabinet Dimensions: 1302mm Width (W1) by 2136mm Height (H1).
Cabinet Depth: The main cabinet maintains a slim profile depth of 350mm.
Total Extension: The total unfolded length (L) of the bed extends 2070(+50)mm into the room.

⚠️ DISCLAIMER
Rendered images are for illustration only.
Actual color, texture, and materials may vary depending on lighting and production batch.
