Folding Table - YT02

YT02 / YT02W Folding Table Series

An ultra-shallow, wall-mounted or cabinet-integrated drop-down dining and study table hardware kit engineered for modern space-saving interiors.

The YT02 series offers a clean, dual-installation folding desk hardware system designed to turn bare wall space or shallow cabinets into functional dining or working surfaces. Featuring a smooth drop-down motion and sturdy folding support legs, it folds flat into a sleek panel, requiring minimal clearance when closed.

Key Features & Variant Comparison

• Two Mounting Configurations:
• YT02 Model: Suitable for mounting inside custom wall cabinets.
• YT02W Model: Suitable for assembling directly onto wooden wall planks or solid backboards.
• Ultra-Slim Profile: Requires only 100 mm of depth when stowed, preserving floor space.

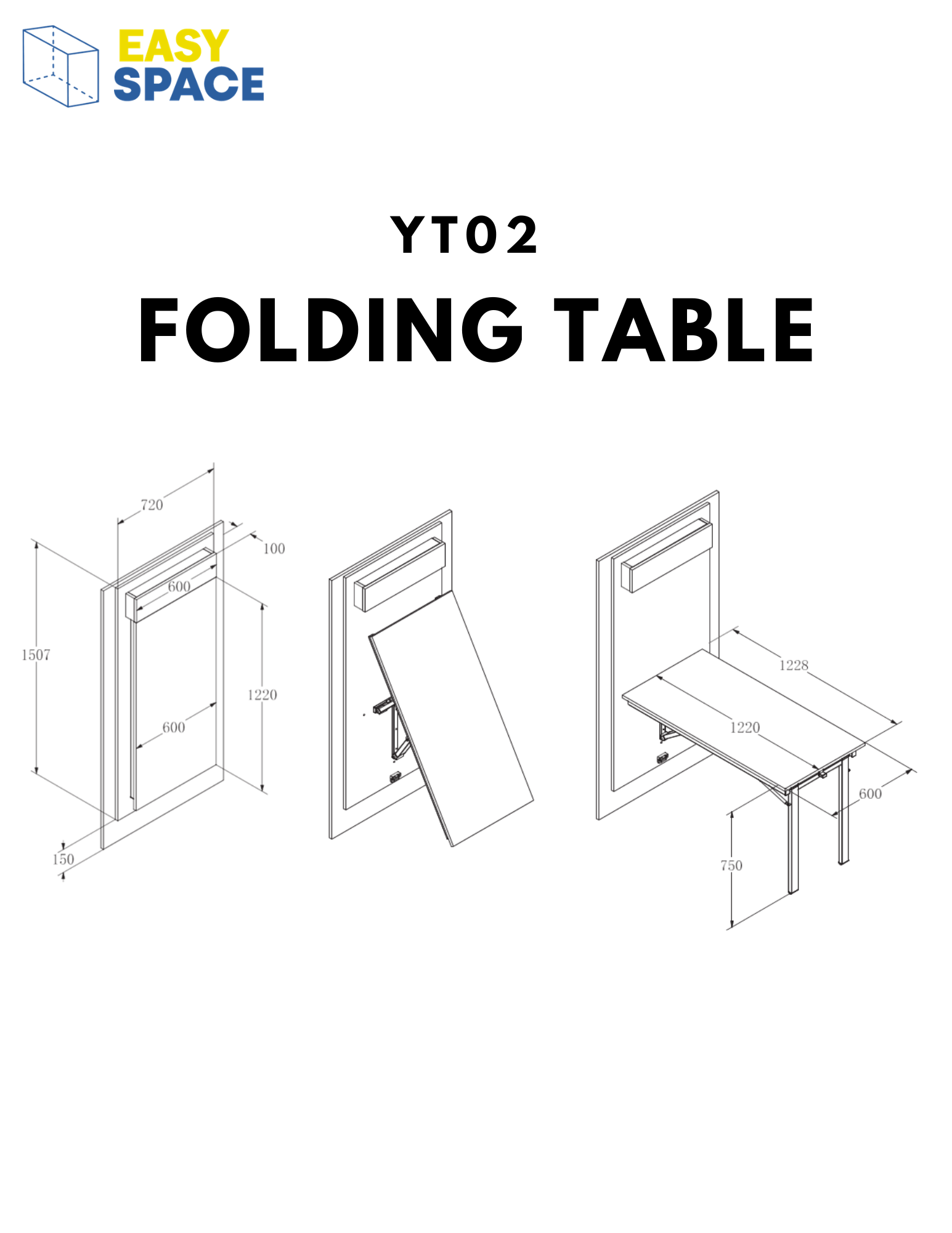

• Ergonomic Table Dimensions:
• Unfolded Tabletop Surface: 1220 mm (Length) x 600 mm (Width)
• Total Extended Depth from Wall: 1228 mm
• Standard Desk Height: 750 mm
• Backboard / Panel Height: 1507 mm overall height (1220 mm folding door panel)
• Panel Width: 600 mm inner / 720 mm outer backboard
• Ground Clearance: 150 mm bottom clearance
• Sturdy Frame & Folding Legs: Outfitted with integrated heavy-duty steel support legs that fold out automatically to ensure wobble-free stability.

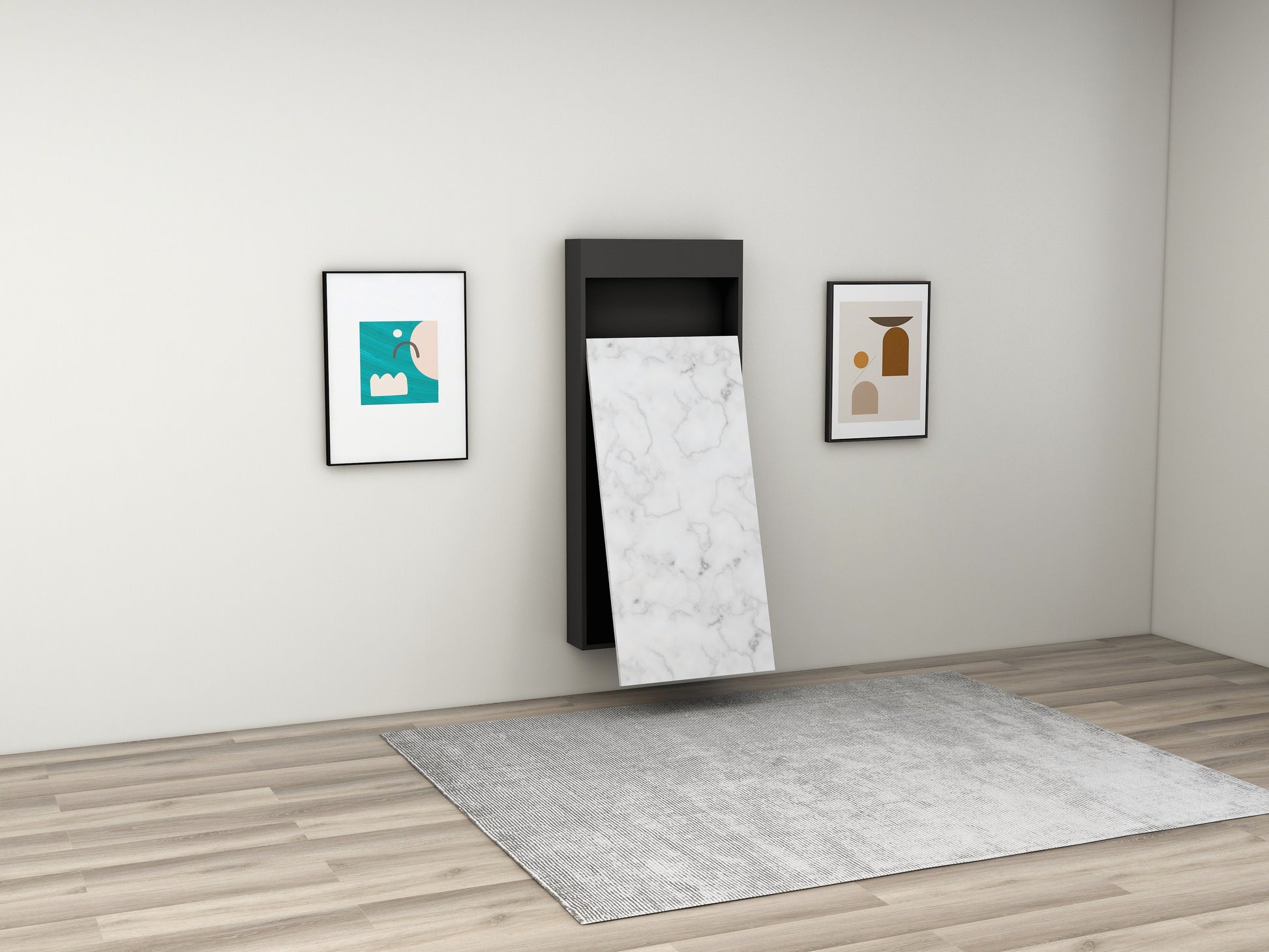

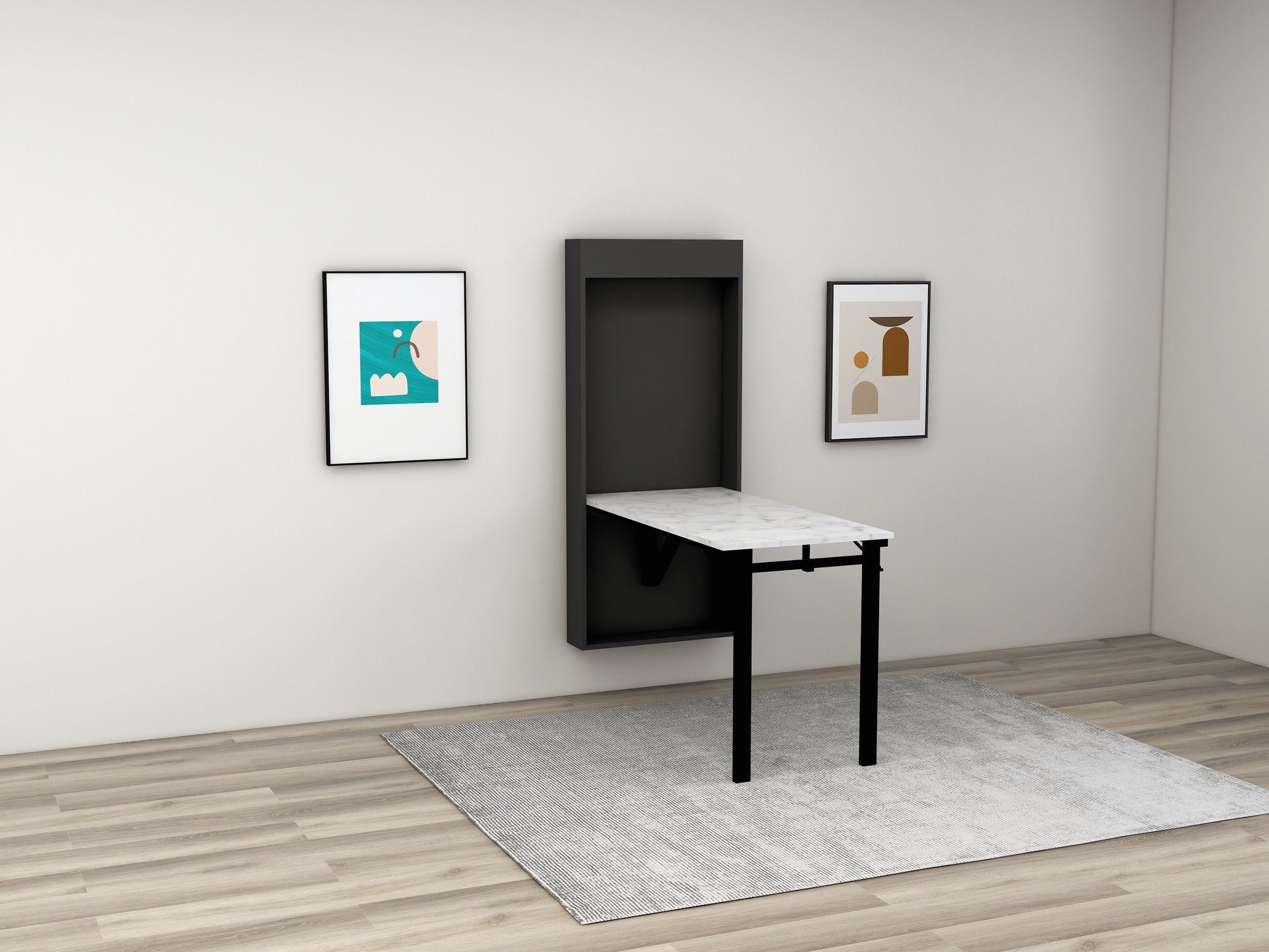

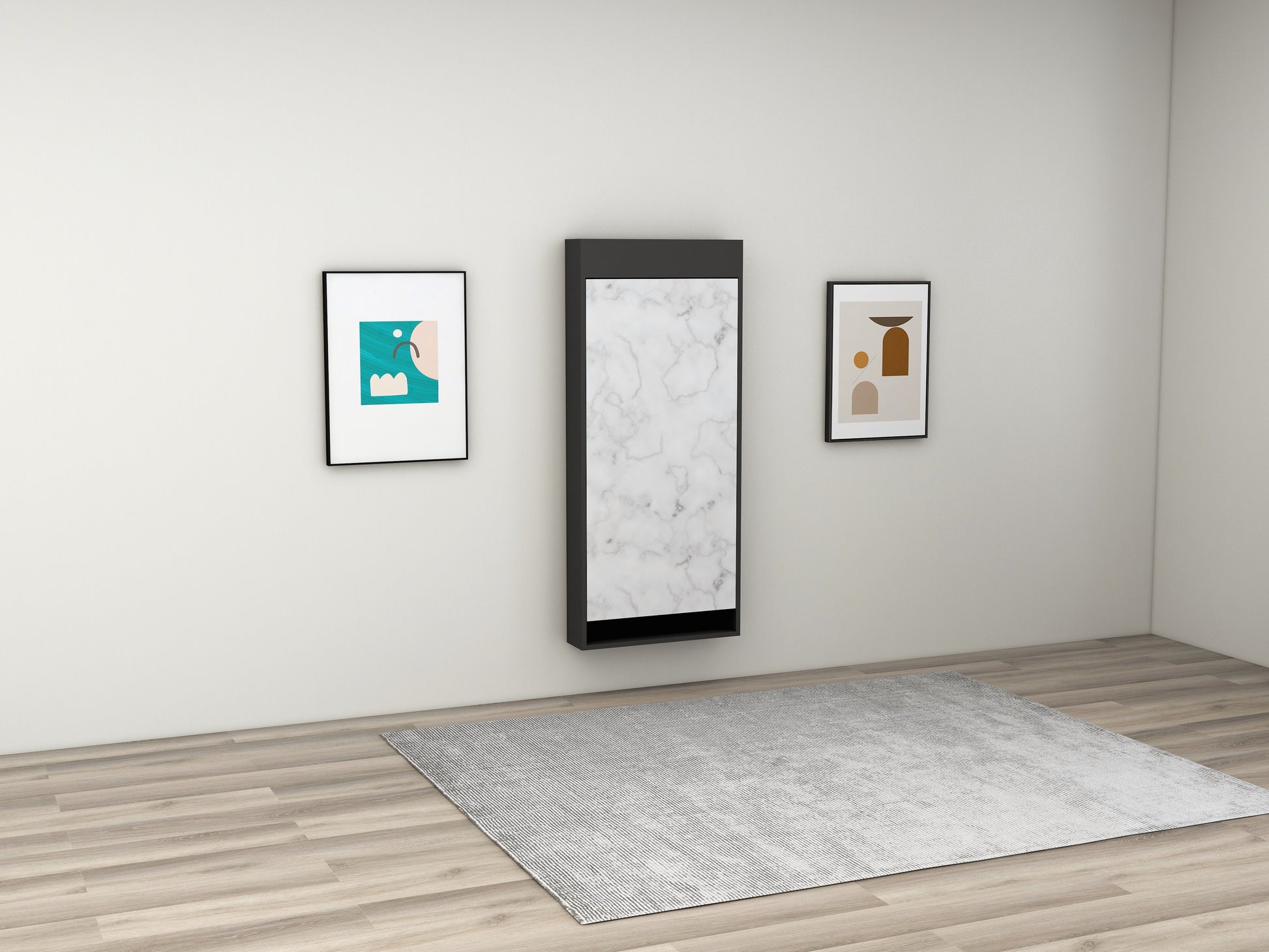

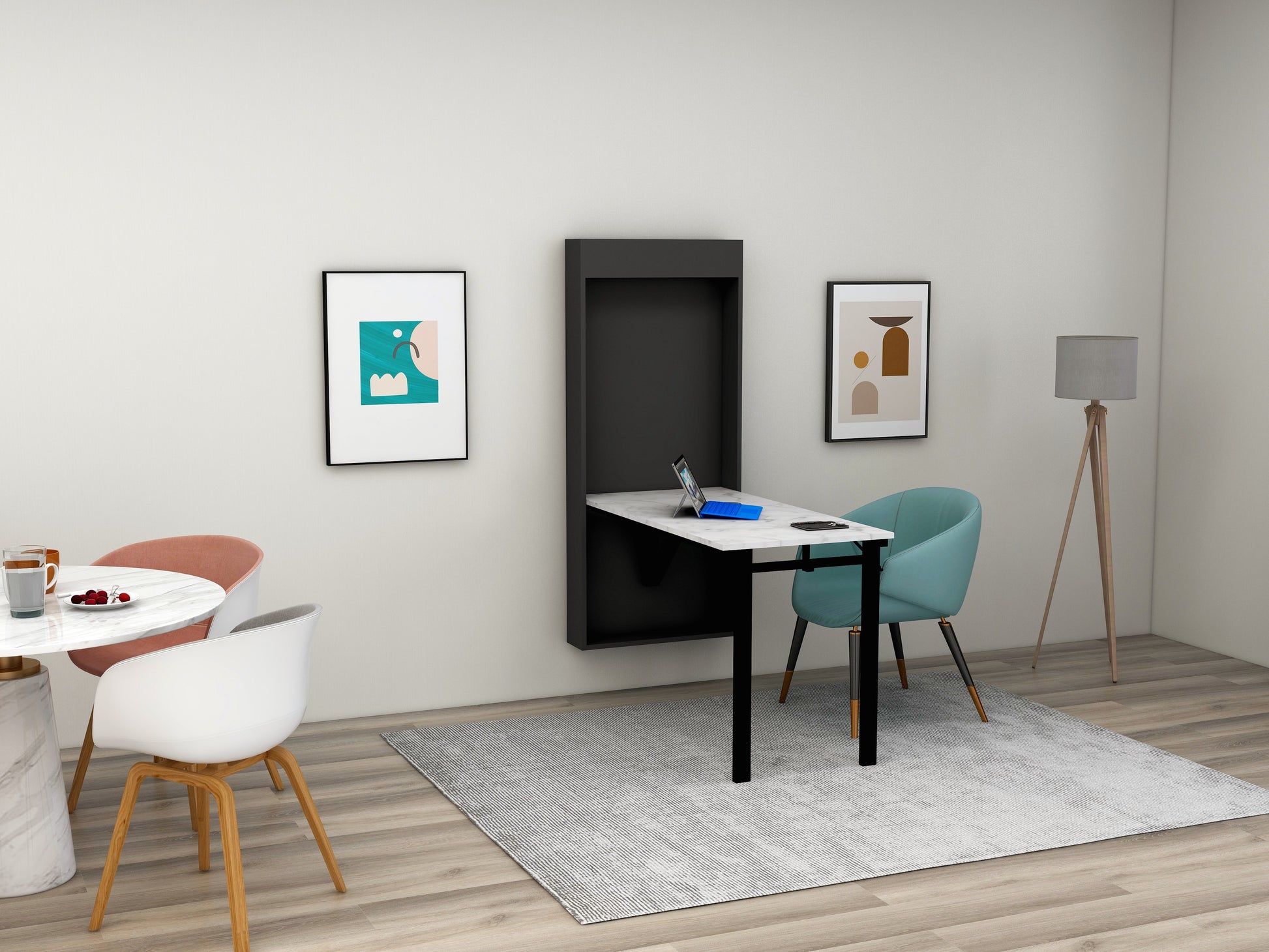

Note: Rendered photo for visual representation only. Actual wood grain, texture, and hardware finish may vary slightly on the final product.
