YT05 Big Table Folding Series

Heavy-duty, ultra-slim foldaway desk hardware engineered to convert narrow wall cabinets or revolving wall bed panels into expansive executive dining and study tables.

The YT05 series is a versatile, large-scale table mechanism designed to maximize floor space in modern homes and offices. With an ultra-shallow depth requirement of just 200 mm when stowed, this system deploys a spacious, stable dining or work desk in one effortless motion while exposing internal storage shelves when extended.

Key Features & Model Comparison

Specification	YT05-0613 Model	YT05-0816 Model
Desktop Dimensions	1310 mm x 595 mm	1600 mm x 795 mm
Cabinet Width	646 mm	846 mm
Cabinet Height	1960 mm	2250 mm
Cabinet Depth (Closed)	200 mm	200 mm
Unfolded Length	1417 mm (Clearance: 1217 mm)	1507 mm
Desk Height	720 mm	720 mm
Best Scope of Application	Wall cabinets & revolving wall bed inner panels	Standard wall cabinets & full wall units

Ultra-Slim Profile: Requires only 200 mm cabinet depth when closed, preserving maximum room space.
Simple & Smooth Operation: Intuitive mechanical drop-down fold system with strong base support leg for wobble-free stability.
Integrated Open Shelving: Reveals built-in storage shelves when the table surface is lowered.

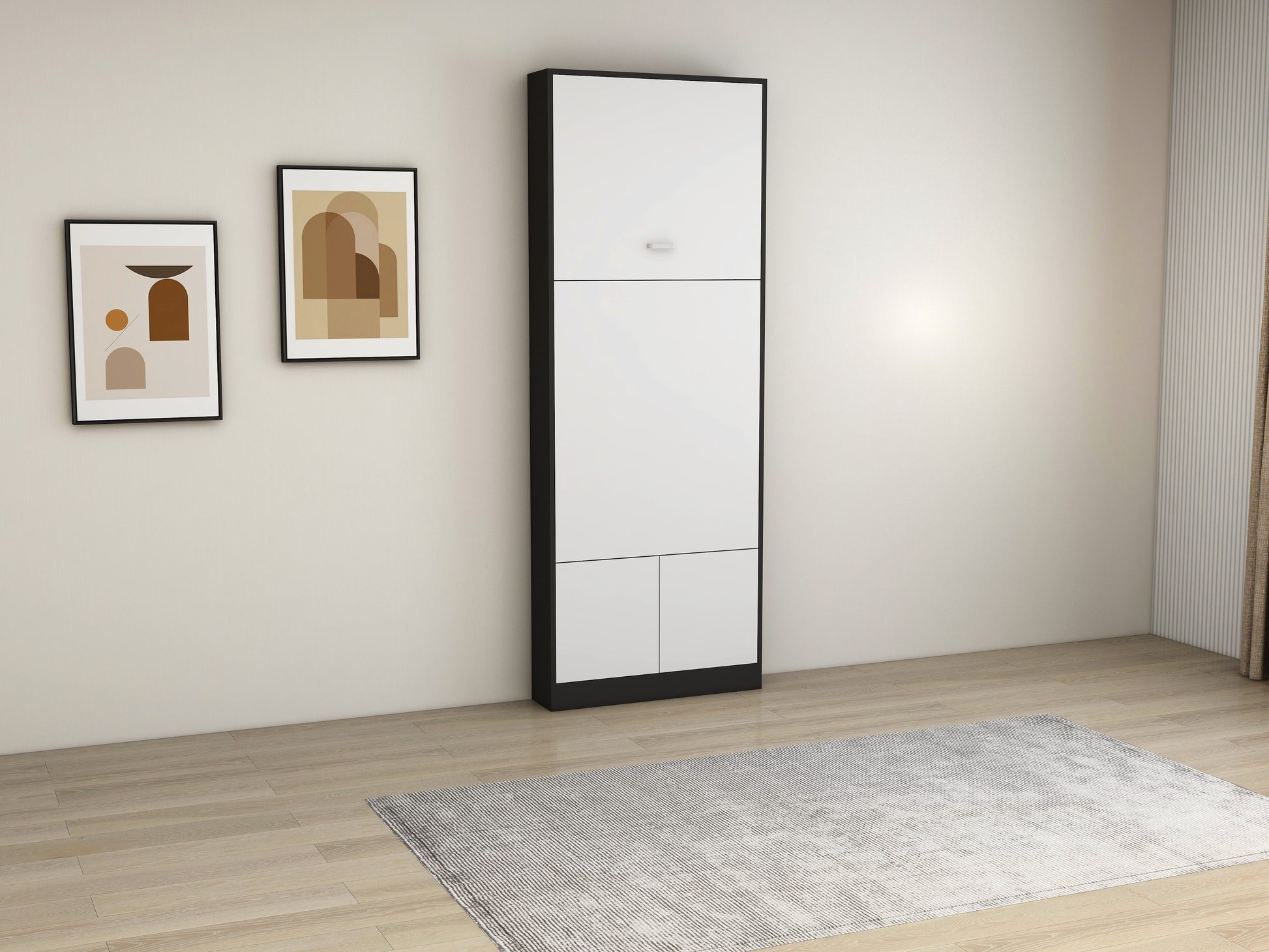

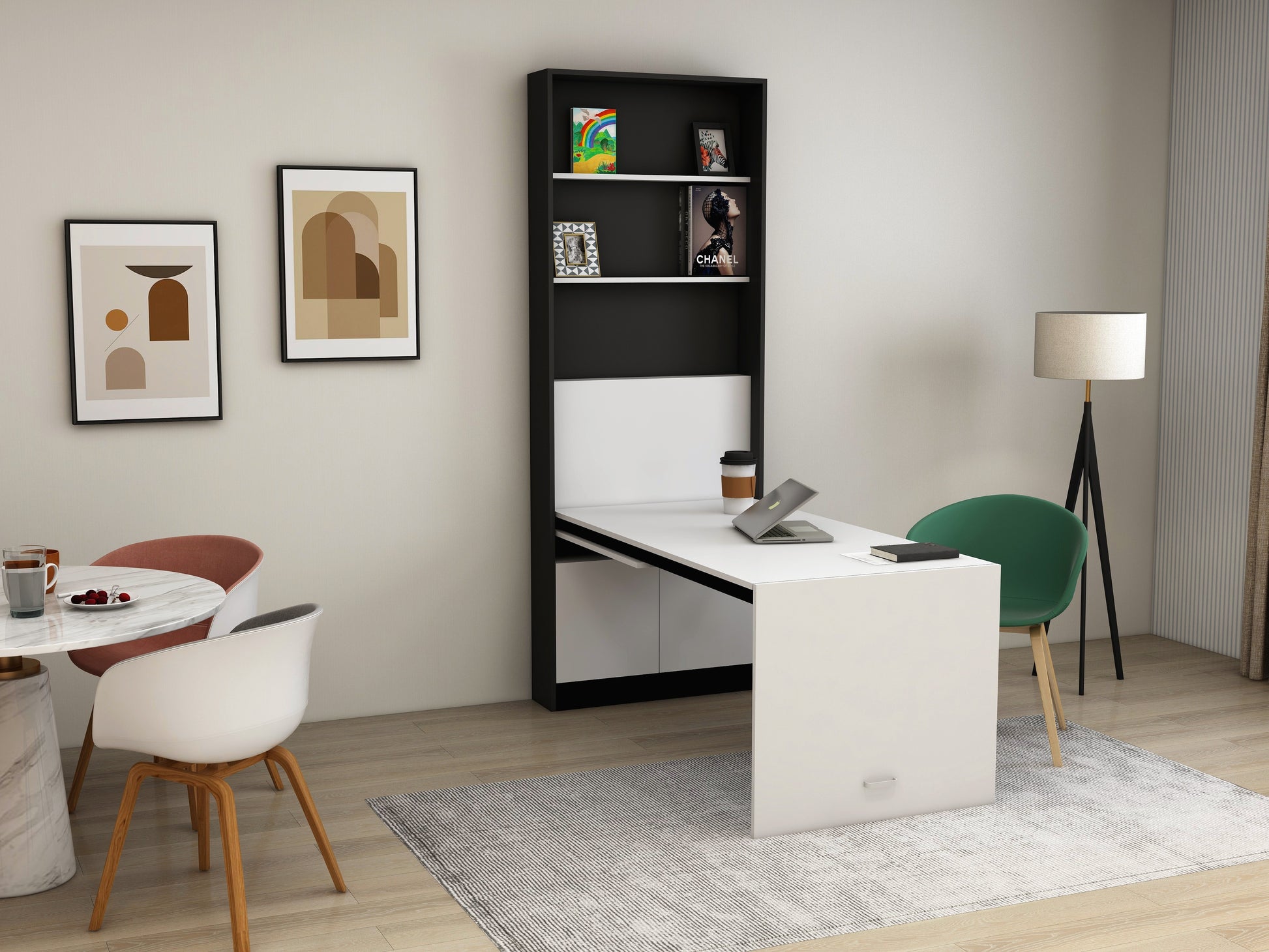

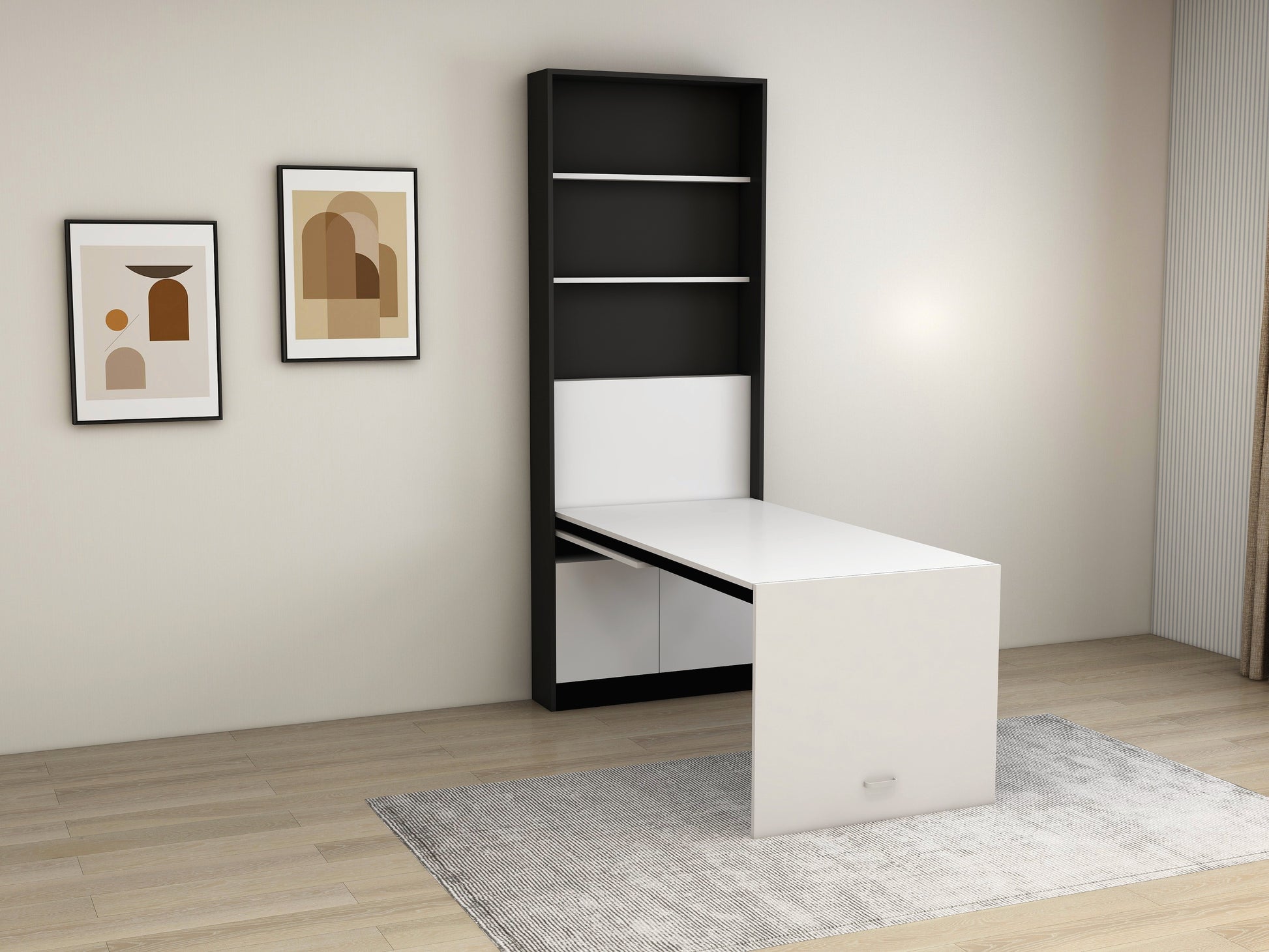

Note: Rendered photo for visual representation only. Actual wood grain, texture, and hardware finish may vary slightly on the final product.

YT05

Designed for more living space.

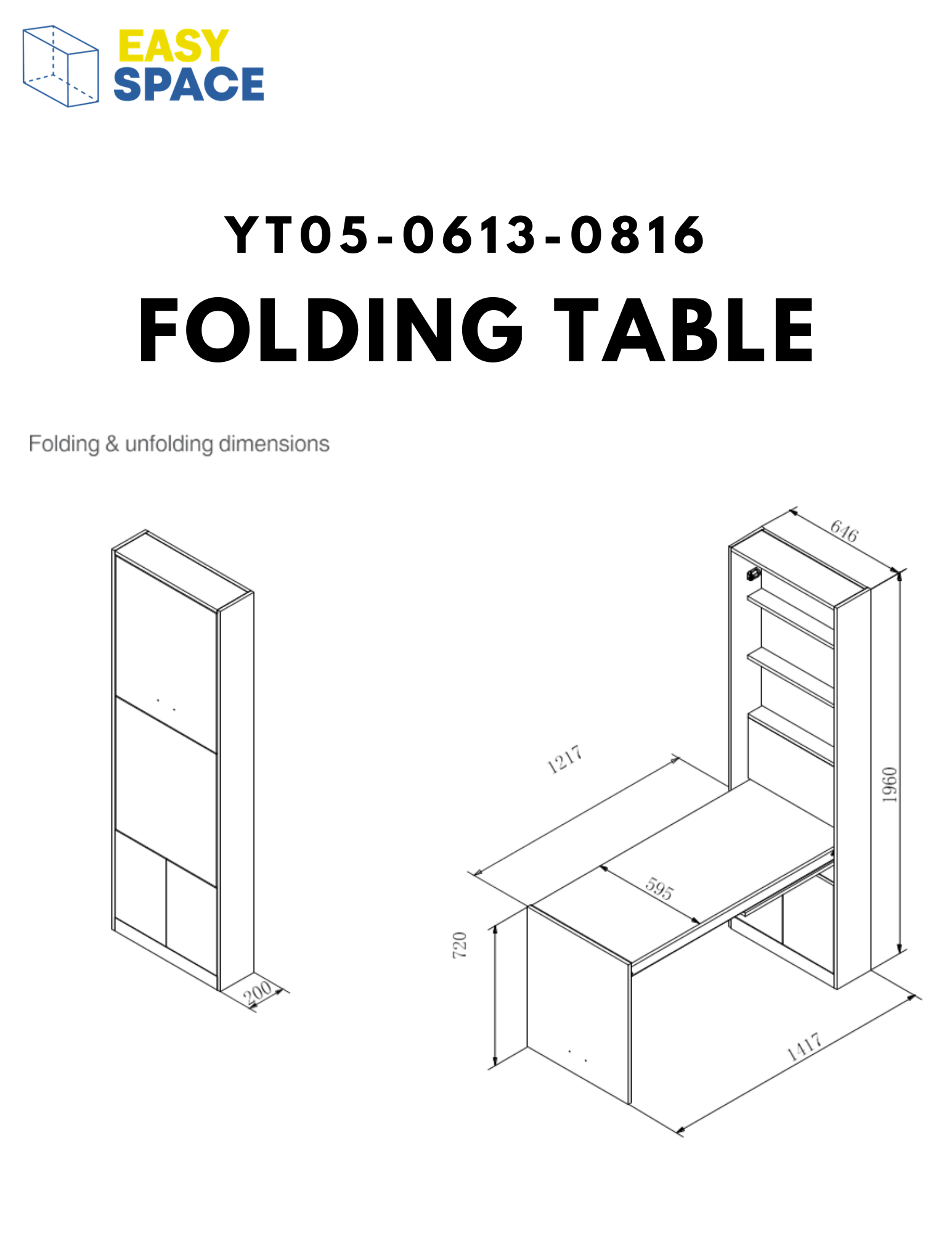

Dimensions

Materials & Finishes

Delivery & Installation
