Manual Vertical Wall Bed - KV

KV Vertical Wall Bed - High Feet Series

Optimize your floor space with the KV Vertical Wall Bed featuring a High Feet design. Ideal for modern interiors, this hardware system allows you to effortlessly conceal a functional bed within a sleek, custom cabinet. The lifting mechanism is expertly engineered so that it will only take a little effort to close the bed, making daily transitions smooth and convenient.

Key Features & Requirements

• Versatile Base Integration: The high feet design accommodates fitting a 0mm skirting line flush against the wall.
• Sofa Compatibility: Designed for fitting a sofa of different heights in front of the unit, including 30mm, 380mm, and 440mm clearances.
• Mattress Limit: All models require a maximum mattress thickness of ≤150mm.
• Customization: Customization is acceptable if your project requires dimensions not included in the standard table specifications.

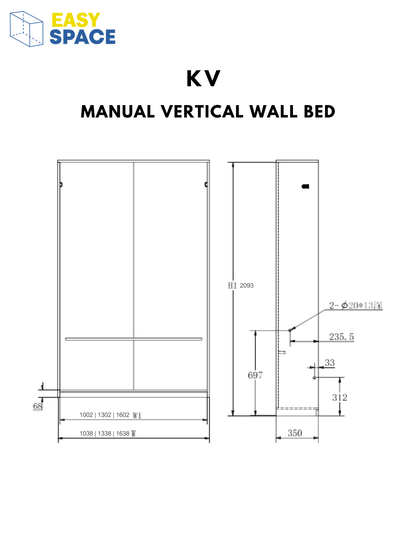

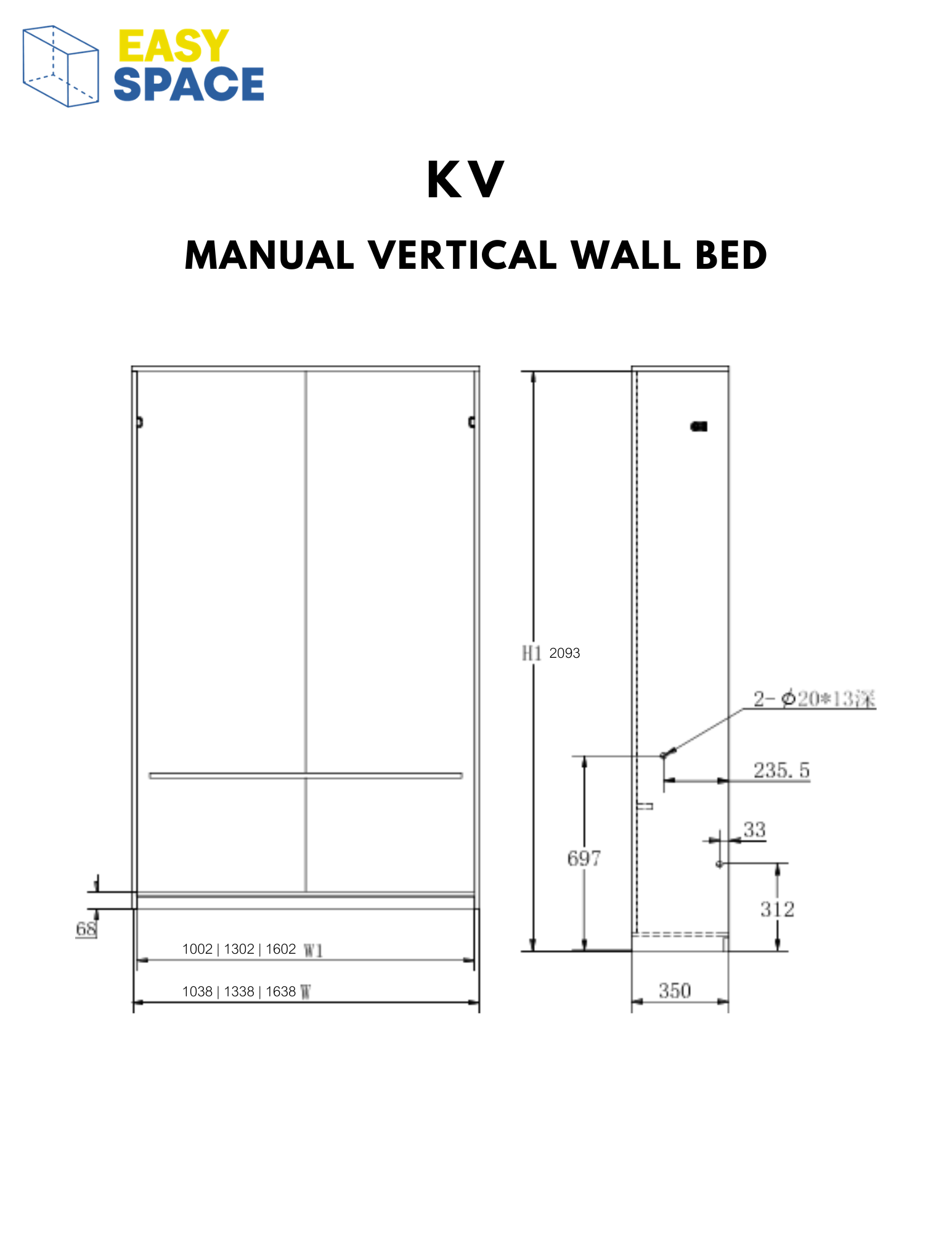

Model Specifications

KV0919

• Compatible Mattress Size: 0.9 * 1.9m.
• Required Mattress Weight: 17~20kg.
• Outer Dimensions: 1038mm Width (W) by 2093mm Height (H).
• Inner Dimensions: 1002mm Width (W1) by 2075mm Height (H1).
• Total Unfolded Length (L): 2070(+50)mm.

KV1219

• Compatible Mattress Size: 1.2 * 1.9m.
• Required Mattress Weight: 21~25kg.
• Outer Dimensions: 1338mm Width (W) by 2093mm Height (H).
• Inner Dimensions: 1302mm Width (W1) by 2075mm Height (H1).
• Total Unfolded Length (L): 2070(+50)mm.

KV1519

• Compatible Mattress Size: 1.5 * 1.9m.
• Required Mattress Weight: 28~32kg.
• Outer Dimensions: 1638mm Width (W) by 2093mm Height (H).
• Inner Dimensions: 1602mm Width (W1) by 2075mm Height (H1).
• Total Unfolded Length (L): 2070(+50)mm.

⚠️ DISCLAIMER
Rendered images are for illustration only.
Actual color, texture, and materials may vary depending on lighting and production batch.
