KSD / JSD Series Vertical Wall Bed with Integrated Desk

A space-saving vertical Murphy bed hardware system featuring a stay-level desk mechanism that converts a study area into a bed without disturbing tabletop items.

The KSD / JSD Series is a dual-function vertical wall bed hardware system designed for smart, adaptable living spaces. Engineered with a self-leveling front desk, it allows the bed to fold down directly over the workstation, keeping computers, lamps, and books perfectly horizontal and in place. Its grooveless front panel design and slim 350 mm cabinet profile deliver a clean, modern aesthetic for any room.

Key Features & Technical Specifications

Self-Leveling Parallel Desk: The front desk 515 mm depth stays parallel to the floor as the bed transitions between open and closed positions, eliminating the need to clear your desk setup.
Seamless Exterior Panel: Designed for a grooveless panel front, creating a sleek, integrated cabinet surface when stored away.
All-in-One vs. Knock-Down Frame Options:

KSD Models: All-in-one welded frame structure for heavy-duty stability.
JSD Models: Knock-down modular bed frame designed for compact shipping and easier assembly.

Slim Cabinet Profile: Requires a shallow depth of only 350 mm when closed.

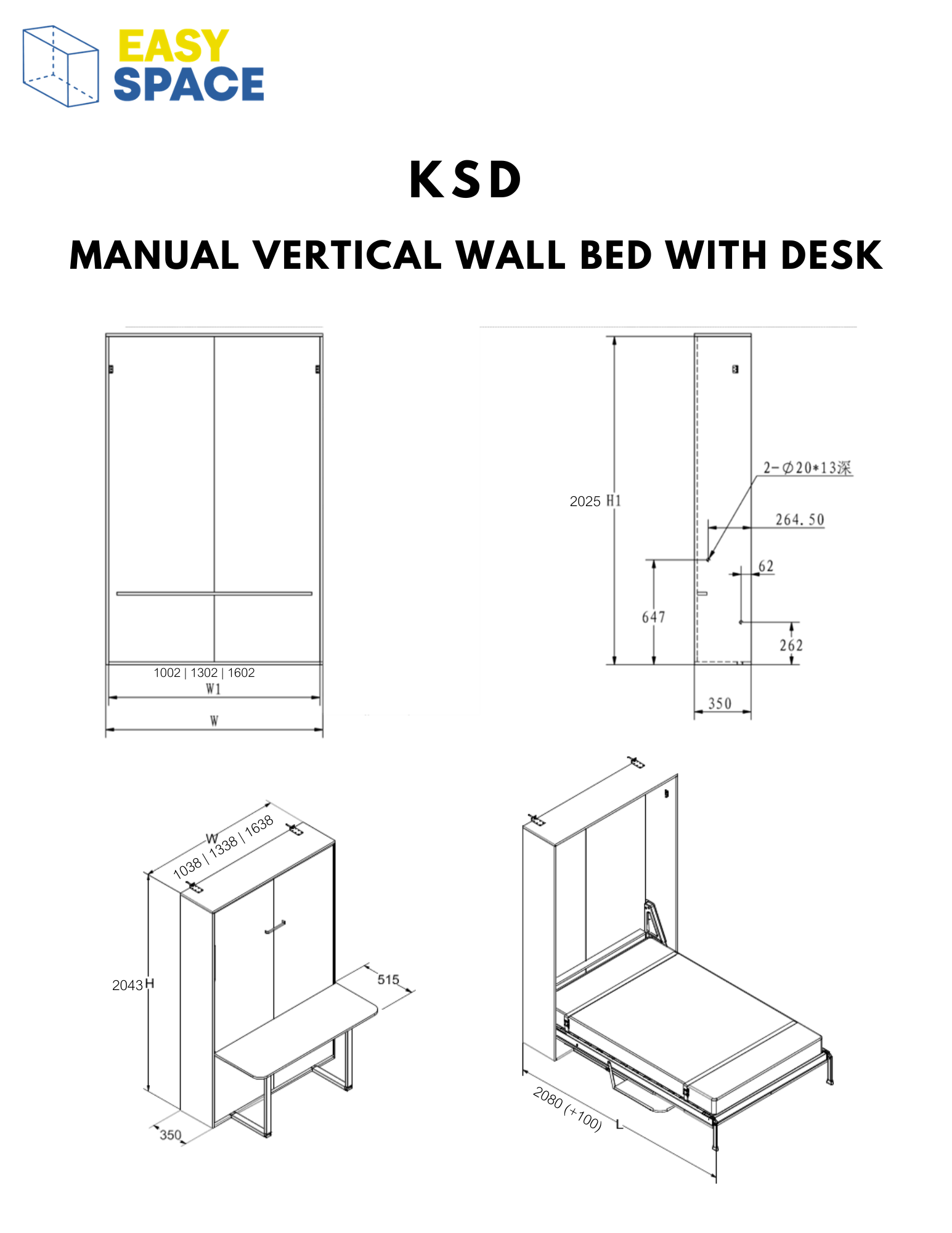

Model Specifications & Sizing Matrix:

Specification	KSD/JSD0919	KSD/JSD1219	KSD/JSD1519
Compatible Mattress Size	0.9 m x 1.9 m	1.2 m x 1.9 m	1.5 m x 1.9 m
Mattress Weight	17 – 20 kg	21 – 25 kg	28 – 32 kg
Max Mattress Thickness	≤ 150 mm	≤ 150 mm	≤ 150 mm
Unfolded Depth (L)	2080 (+100) mm	2080 (+100) mm	2080 (+100) mm
Outer Width (W)	1038 mm	1338 mm	1638 mm
Inner Width (W1)	1002 mm	1302 mm	1602 mm
Outer Height (H)	2043 mm	2043 mm	2043 mm
Inner Height (H1)	2025 mm	2025 mm	2025 mm

Note: Rendered photo for visual representation only. Actual wood grain, texture, and hardware finish may vary slightly on the final product.
