Short Break Bed - FJ0619

FJ0619 Short Break Wall Cabinet Folding Bed

An economical, ultra-slim foldaway wall bed hardware system engineered for quick rest periods, classroom nap spaces, and hotel extra-bed integration.

The FJ0619 is a compact, gas-spring assisted wall bed mechanism designed to turn shallow wall cabinets into temporary sleeping platforms. Built with a "soft landing" design for controlled, safe deployment and effortless fold-up operation, it offers a budget-friendly solution for institutions, offices, and hotels needing hidden sleeping options without taking up room space during the day.

Key Features & Technical Specifications

• Compatible Bed Plate Size: Fits a 560 mm x 1900 mm sleeping surface (Note: FJ0919 model fits 860 mm x 1900 mm)
• Gas-Spring Assisted Opening: Integrated hydraulic piston system ensures smooth, effortless raising and lower-controlled "soft landing" safety.
• Ultra-Shallow Cabinet Footprint: Requires a cabinet depth of only 254 mm when stowed away.

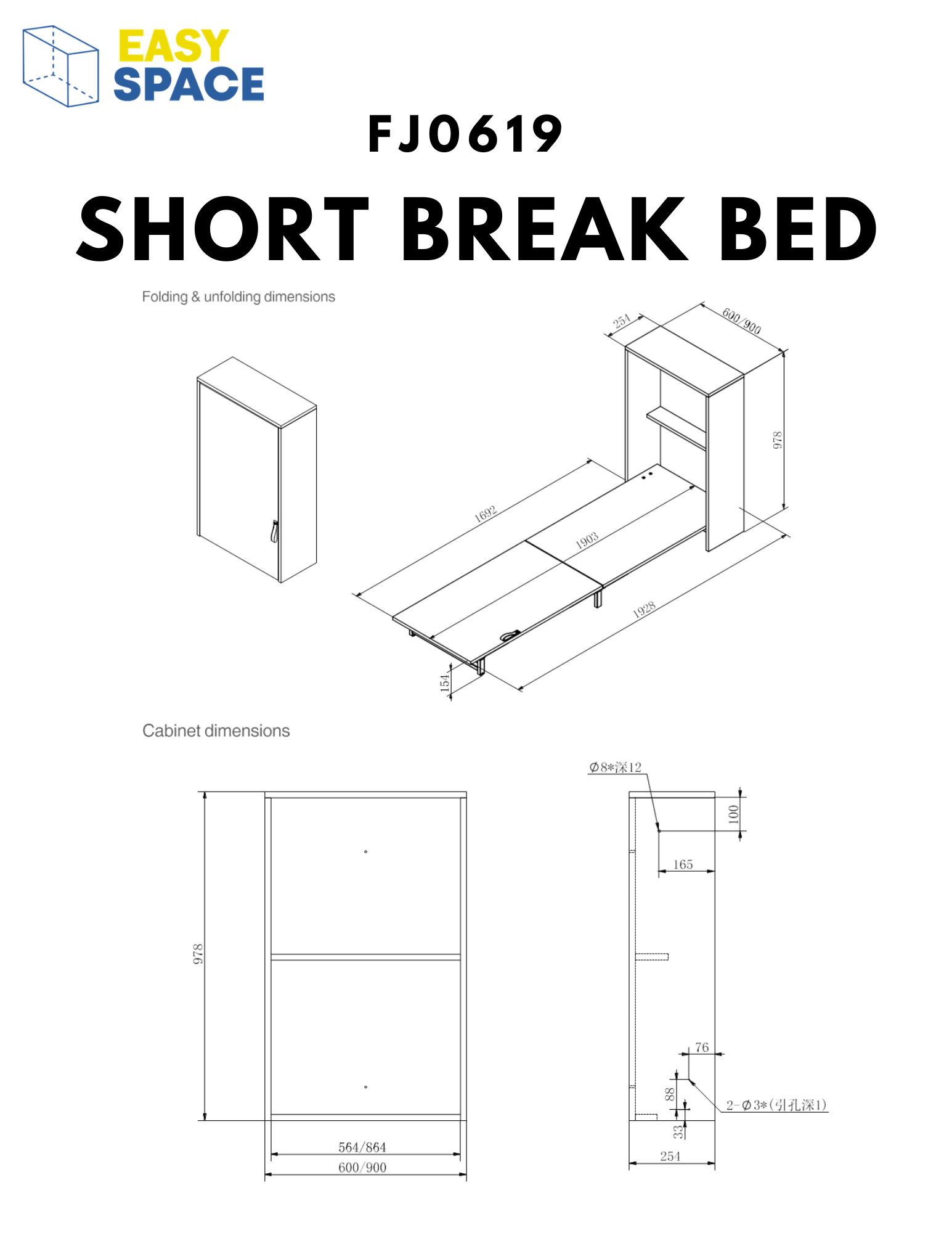

• Cabinet & Unfolding Dimensions:
• Cabinet Width: 600 mm (Outer) / 564 mm (Inner)
• Cabinet Depth: 254 mm
• Cabinet Height: 978 mm
• Unfolded Overall Length: 1928 mm (Bed plate length 1903 mm
• Bed Leg Ground Clearance: 154 mm
• Cost-Effective & Easy Operation: Simple mechanical structure for easy installation and long-term durability.

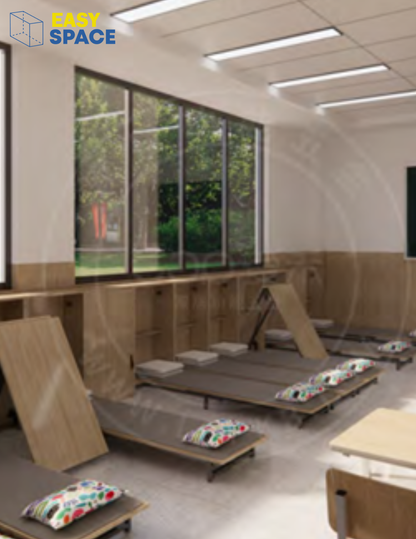

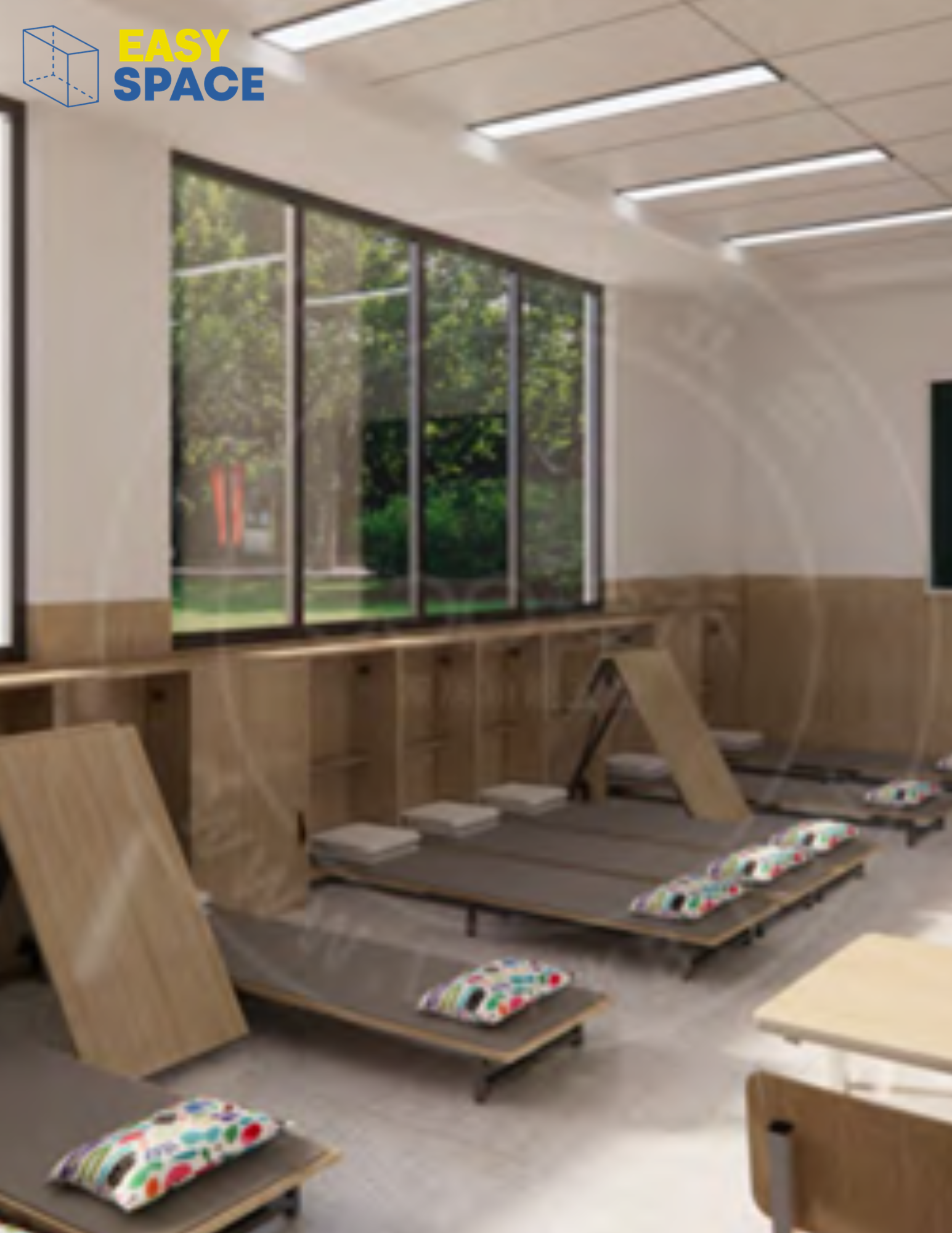

Note: Rendered photo for visual representation only. Actual wood grain, texture, and hardware finish may vary slightly on the final product
