Longitudinal Panning Kitchen Island - SN16

SN16 Longitudinal Panning Kitchen Island System

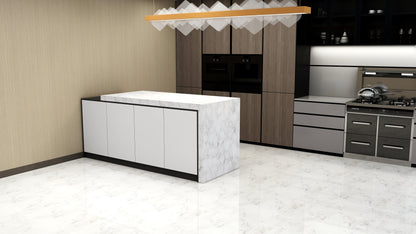

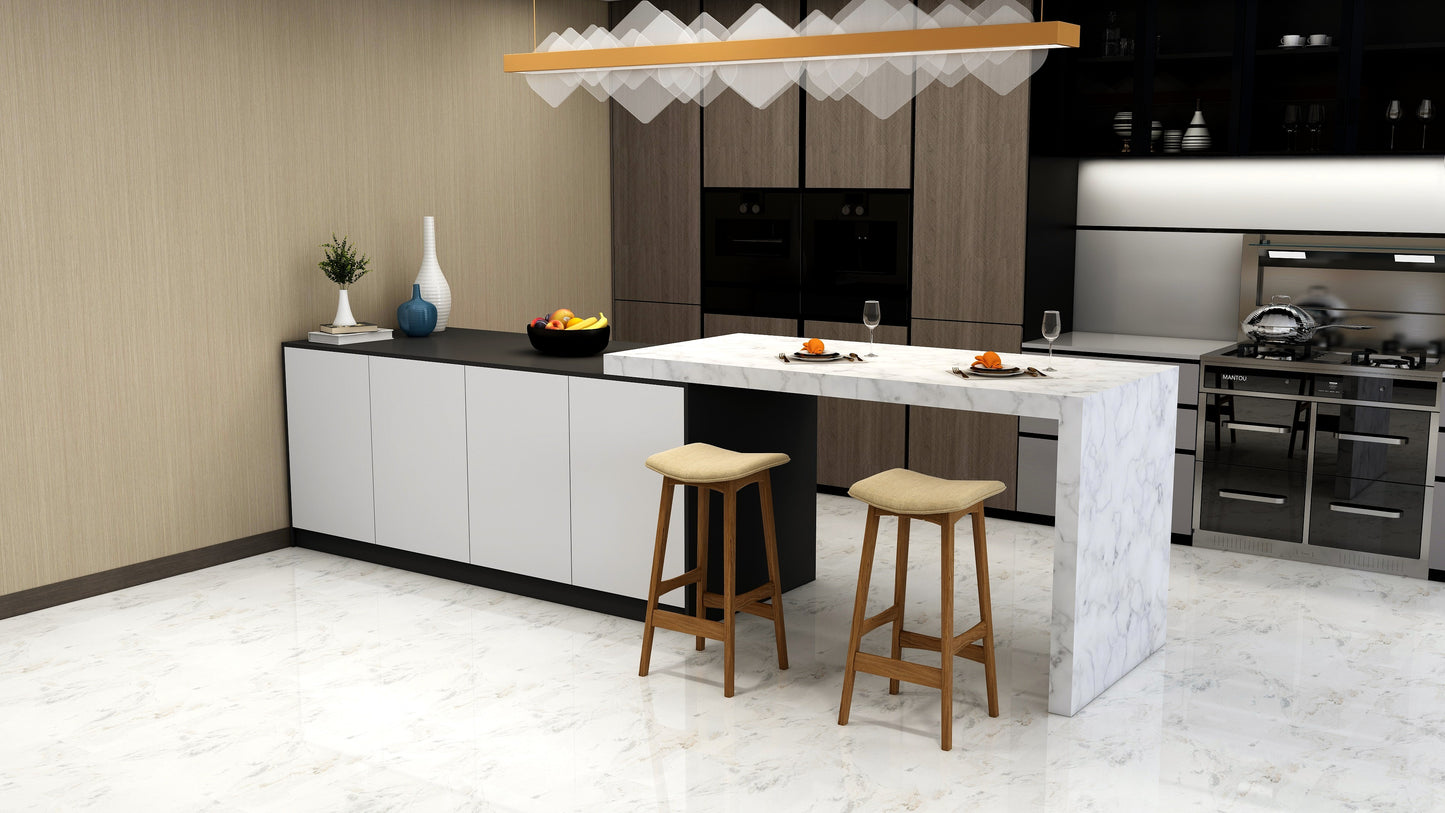

Transform your kitchen dynamics with the SN16 Longitudinal Panning Kitchen Island hardware system (Model: SN16-280-2-TX). Designed for modern, minimalist interiors, this innovative sliding mechanism allows a secondary countertop to glide seamlessly lengthwise over a fixed base unit. When closed, it presents a clean, unified block; when extended, it instantly creates a spacious dining bar or additional prep station supported by a sturdy end leg.

Hardware Configuration This comprehensive hardware kit is engineered for smooth, quiet operation and includes:

• Longitudinal tracks (for track lengths ≤ 1500mm)
• 280mm support brackets
• Load-bearing balance wheels
• Noise-reducing limiters/stoppers
• Linear casters

Design & Installation Specifications

• Recommended Width: The moving tabletop is best suited for widths between 400mm and 1000mm.
• Structural Stability: The system is designed so that when fully extended, the moving surface maintains a safe 410mm overlap with the fixed countertop below.
• Track Calculation: Track length (X) = Moving tabletop length - Moving leg thickness (standard 80mm design) - 104mm.
• Material Advisory: If you plan to use heavy surface materials such as marble or solid stone for the sliding top, it is strongly recommended to incorporate a steel reinforcing frame into your design to ensure lasting durability.

⚠️ DISCLAIMER
Rendered images are for illustration only.
Actual color, texture, and materials may vary depending on lighting and production batch.
