FM1 Minimalist Wall Cabinet Folding Bed

An ultra-compact, cost-effective fold-out wall bed system designed specifically for children's spaces, nap rooms, and institutional multi-use settings.

The FM1 is a minimalist wall cabinet fold-away bed hardware kit engineered to convert narrow wall cabinets into instant sleeping spaces. Built with child safety in mind, it features a low-cost, easy-to-pull mechanism that allows a single sleeping platform to fold down smoothly while serving as an organized wall storage cabinet when stowed away.

Key Features & Technical Specifications

Child-Safe & Ergonomic Design: Features a soft, protective handle/support leg design and safe covers to ensure smooth, secure operation for children's use.
Compact Wall Cabinet Profile: Extends only 245 mm deep when stowed, preserving maximum floor space during working or active hours.
Cost-Effective Space Optimization: Offers an economical solution for modular wall units, school nap areas, daycares, or compact kids' bedrooms.

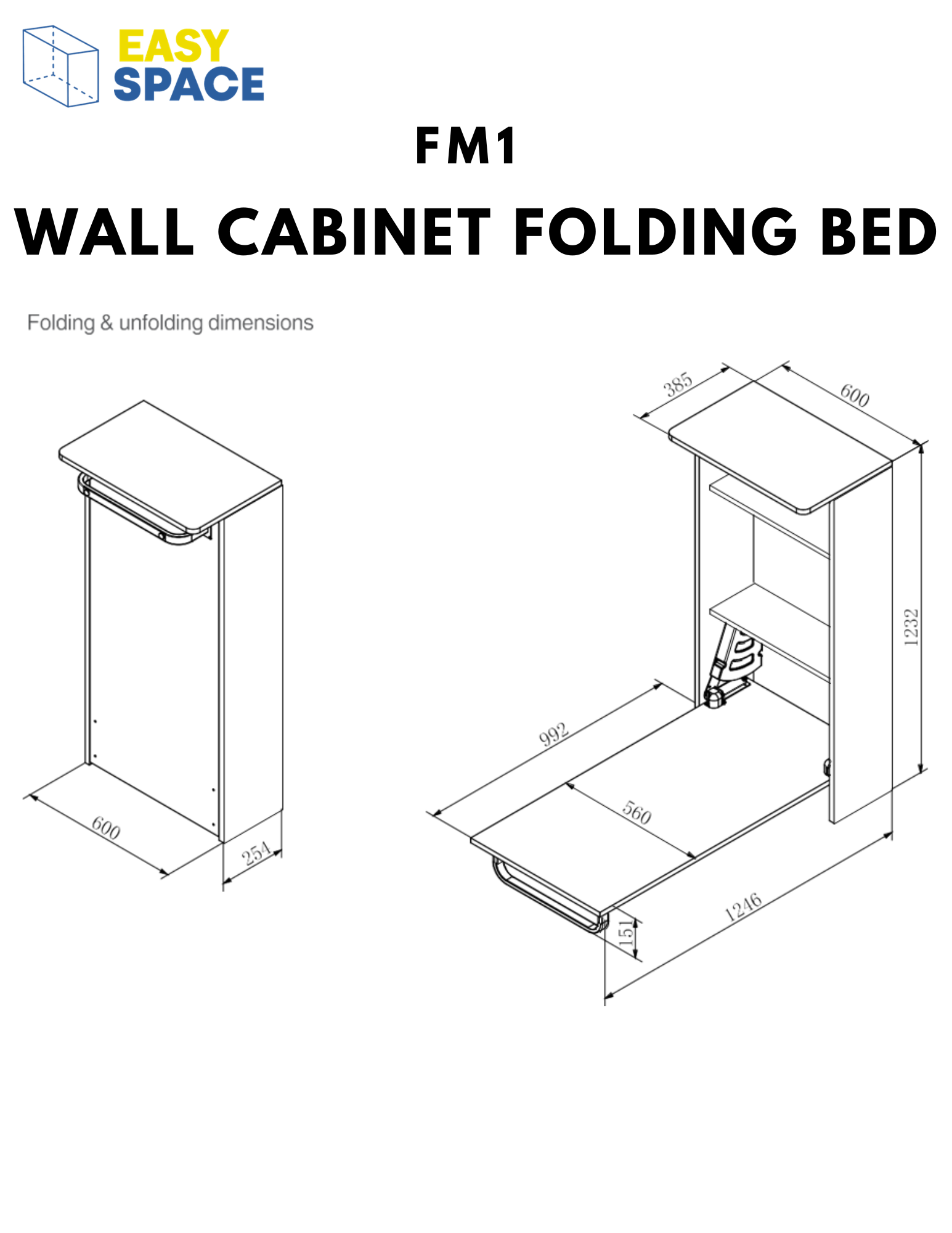

Cabinet & Bed Dimensions:

Cabinet Width: 600 mm
Cabinet Depth (Closed): 254 mm
Top Shelf Depth: 380 mm
Overall Height: 1232 mm
Unfolded Bed Length: 1246 mm
Bed Width: 560 mm (sleeping platform width) / 600 mm (outer frame)
Bed Leg Ground Clearance: 154 mm

Note: Rendered photo for visual representation only. Actual wood grain, texture, and hardware finish may vary slightly on the final product.
